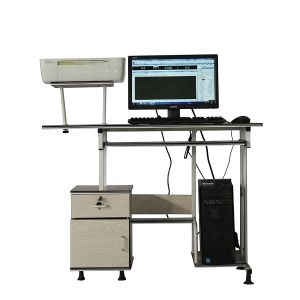

Computer Control Geotextile Material Testing Machine , Tensile Compression Tester
Overview
The digital geotextile material tensile testing machine is used for various geotextile materials for tensile tests.
Application standards
ASTM E8 - 16 Standard Test Methods for Tension Testing of Metallic Materials
ISO 6892-1 Materials --tensile testing
ASTM D638
Remote control with display
Ergonomically-designed and easy to operate
Test star and stop operation
Crosshead moving up, down, jog up, jog down
Display of measurement channel: force, displacement, extension and etc.
Test status display
Specimen protection function
Technical parameters
|
Model |
WDW-T10KN |
WDW-T20KN |
WDW-T30KN |
WDW-T50KN |
WDW-T100KN |
|
Capacity/load |
10KN |
20KN |
30KN |
50KN |
100KN |
|
Load accuracy |
Class 1(Class 0.5 optional) |
||||
|
Load range |
1%-100% FS(0.4%-100% optional) |
||||
|
Testing speed |
0.001-1000mm/min |
||||
|
Cross head travel |
1000mm |
1000mm |
1000mm |
1000mm |
1000mm |
|
Effective tensile range |
700mm |
700mm |
700mm |
700mm |
700mm |
|
Effective test width |
400mm |
400mm |
450mm |
450mm |
500mm |
|
Load resolution |
1/30000 |
||||
|
Deformation measuring range |
1%-100% FS |
||||
|
Deformation |
≤±0.5% |
||||
|
Power supply |
AC 220V 50Hz( Can be customized as customers' requirements) |
||||
|
Clamping Fixture Configuration |
|
|
Tensile grips |
Manual wedge fixture or hydrualic automatic clamping fixture |
|
Round specimen clamping range |
Φ4-9,9-14,14-20mm |
|
Flat specimen clamping range |
0-7,7-14,14-20mm |
|
Compression Plate |
Φ170 x 170 mm (can be customized as customer request) |
|
Bending fixture |
3-point bending fixture (4-point bending fixture is optional) |
|
Electronic extensometer |
YUU10/50 |
Packing & Delivery
Inner water-proof plastic film packaging
Outer plywood box for export
Shipping time: 10-20 days after payment
FAQ
1. Are your company a trading one or a factory?
Factory + trading company (integration), 21 years focusing on test instruments field, 5 years exporting experience.
2. After an order is placed, when to delivery?
Generally about 15 working days, If we have inventory, we can arrange shipment within 3 working days.
Please be aware that our production lead times depend on specific items and item quantities.
3. What about the warranty with after - sales services?
12 months warranty after delivery. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in
a professional and timely.
4. What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
Product use training, each of our product provide video training to show you how to install & operate.
All the products meet with: ISO, ASTM, AATCC, BS, EN, DIN, JIS and other required standards.
